TRAY DRYER APPLICATION & PROCESS

Tray Drying Ovens are used for drying of pharmaceutical powders, granules, Pigments, Food, Bakery, Electrodes, Chemical, and Plastic etc in an effective and economical way by hot air re-circulation.

Tray dryer is an enclosed insulated chamber in which trays are placed on top of each other. Heat transfer is done by circulation of hot air by electric heaters or any other heating media. Blower fans are installed inside to ensure proper circulation and transfer of heat.

SALIENT FEATURES OF SHELF DRYER OVEN

• Available in 24, 48, 96 & 192 Trays.
• Design is cGMP – Current Good Manufacturing Practices compliance.
• All contact parts AISI 316/304 & non contact parts AISI 304/ M.S. with painted.
• Highly effective uniform air re-circulating system by low speed fan.
• Inlet air filter and damper at inlet and exhaust air damper for air flow controls.
• Controls panel with Digital temperature controller and process timer controller.
• Mobile trolleys are provided which are used to load and unload the trays into the dryer.

TRAY DRYING OVENS OPTIONAL FEATURES

• Heating system Electrical / Steam / Gas Heating.
• Separate Inlet AHU with HEPA Filtration.
• Perforated tray.
• Standard Painted Model.

TRAY DRYER SAFETY FEATURES

• Automatic Temperature & controls, Process cycle controls.
• Overload relay Protection and Emergency stop button.

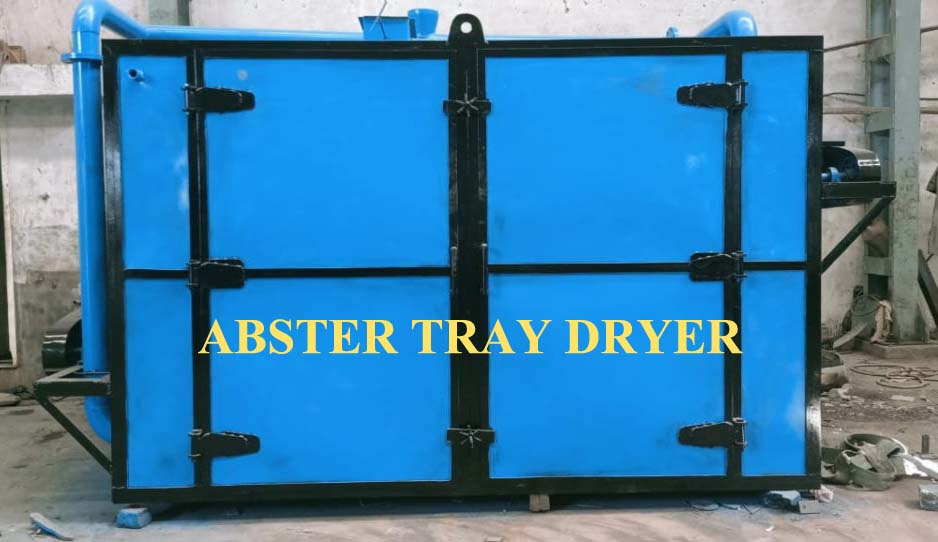

Tray Dryer

How to Use Tray Dryer?

• Preheat the Tray Dryer: Before using the tray dryer, preheat it to the desired temperature. This is usually done by turning on the heating system and setting the temperature to the required level.
• Load the Trays: Once the tray dryer is preheated, load the trays with the material to be dried. Make sure to spread the material evenly on the trays to ensure uniform drying.
• Set the Timer: Set the timer on the tray dryer to the desired time. The drying time will depend on the type and quantity of material being dried.
• Adjust the Temperature: Check the temperature of the tray dryer periodically and adjust it as needed to ensure that the material is drying at the desired rate.
• Monitor the Drying Process: Monitor the drying process by checking the moisture content of the material periodically. This can be done using a moisture meter or by weighing the material before and after drying.
• Unload the Trays: Once the material is dry, unload the trays from the tray dryer and allow them to cool before handling.
• Clean the Tray Dryer: After use, clean the tray dryer to ensure that it is free from any remaining material or debris.

Applications of Tray Dryer:

• Food Processing: Tray dryers are commonly used in the food processing industry to dry fruits, vegetables, spices, and herbs. This helps to preserve the flavor, color, and nutrients of the food.
• Pharmaceutical Industry: Tray dryers are widely used in the pharmaceutical industry to dry granules, powders, and tablets. This helps to remove moisture and improve the shelf life of the products.
• Chemical Industry: Tray dryers are used in the chemical industry to dry various chemicals, including pigments, dyes, and pesticides.
• Textile Industry: Tray dryers are used in the textile industry to dry fabrics, yarns, and fibers.
• Industrial Applications: Tray dryers are used in various industrial applications, including ceramics, plastics, and metalworking, to dry and cure coatings, paints, and adhesives.
• Research and Development: Tray dryers are also used in research and development laboratories to dry and test samples.

Salient Features :

• Uniform Drying: Tray dryers are designed to provide uniform drying throughout the material being dried, ensuring consistent quality.
• Versatile: Tray dryers are versatile and can be used for drying a wide range of materials, including granules, powders, and herbs.
• Time-Saving: Tray dryers can dry materials quickly, reducing the time required for the drying process.
• Cost-Effective: Tray dryers are cost-effective as they require low maintenance and have a long service life.
• Easy to Operate: Tray dryers are easy to operate, and the drying process can be controlled with precision.
• Hygienic: Tray dryers are easy to clean and sanitize, making them suitable for use in industries where hygiene is crucial, such as the food and pharmaceutical industries.
• Energy-Efficient: Tray dryers are designed to be energy-efficient, and the use of hot air as the drying medium makes them more environmentally friendly than other drying methods.
